![](https://cdn.myportfolio.com/8d3f5c9742b0455daef5498cc051d980/3f9e988925969bd396389faf_rw_1920.jpeg?h=6481863f4fe95605fb0102b5b433bfd6)
1st Floor
![](https://cdn.myportfolio.com/8d3f5c9742b0455daef5498cc051d980/91056e59ebb3b0710210f323_rw_1920.jpeg?h=dea22d0b9a980d6aa38370c677f1d707)

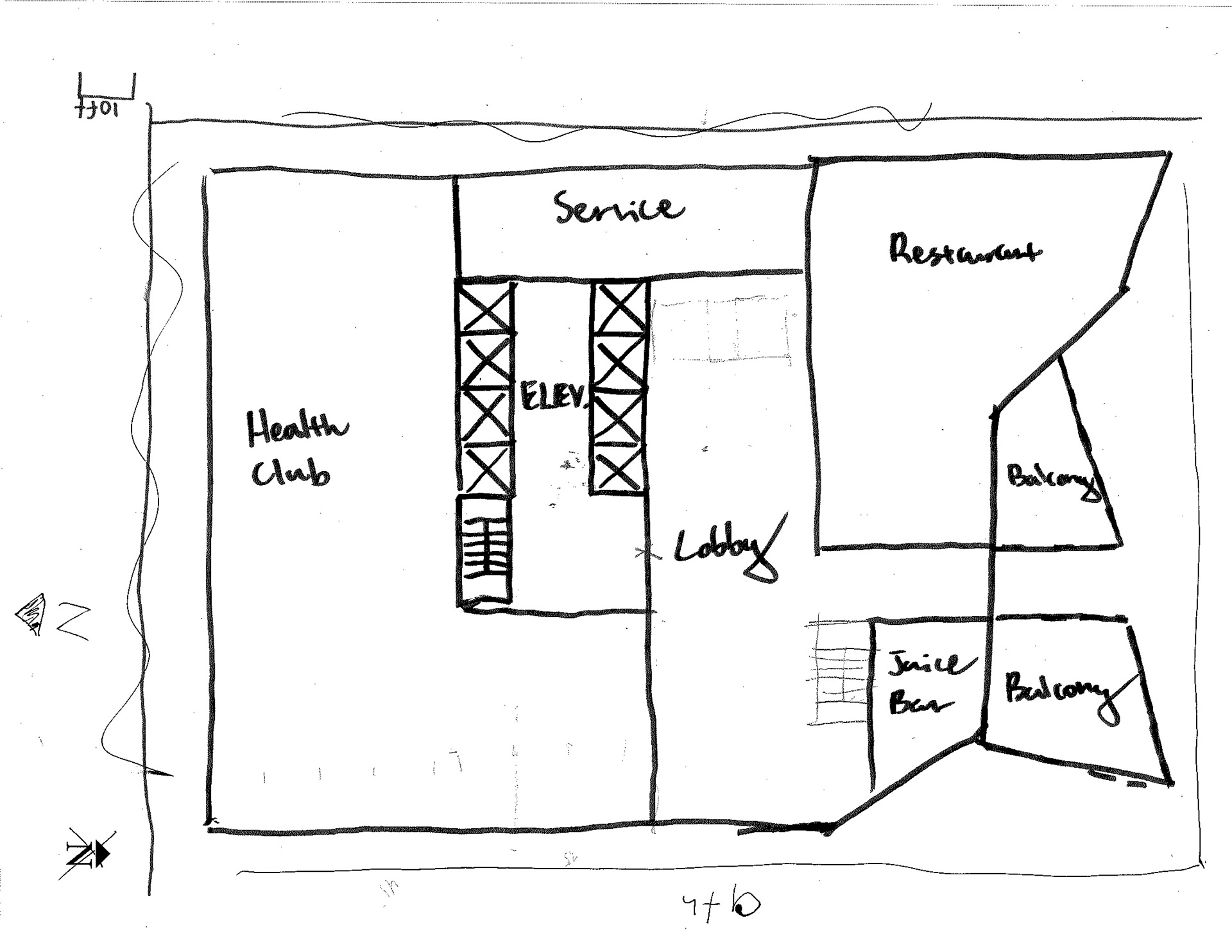

2nd Floor
![](https://cdn.myportfolio.com/8d3f5c9742b0455daef5498cc051d980/fb16ef2c5bd33d069c0d68b1_rw_1920.png?h=c999227d4a2914d462cbc6c7bc89cb1b)
Massing With Residential
After we did the design for our 1st and 2nd floor plans, and another group had made a general residential floor plan, I made a 1st draft massing for the building.
![](https://cdn.myportfolio.com/8d3f5c9742b0455daef5498cc051d980/fd2563619c587ee4208c0903_rw_1920.png?h=7c36313569dbb2598c64f5e96eb4161d)
Massing 2.0
This is the expanded version of the previous massing. As a group, we decided to add some freeness to the front face and the side face. I was tasked with designing this new form. I made the large front face repeat every four floors, and the side every other floor. I did the side like this, to transition from fully free, to fully smooth. It gives the face freeness but in a controlled manner.
